Centrifugal Fan DDM 9/7 25/19 PREMIUM - 2,900 m³/h - 230 V

9/7 snail pump, 2,900 m³/h, single-phase, 25/19

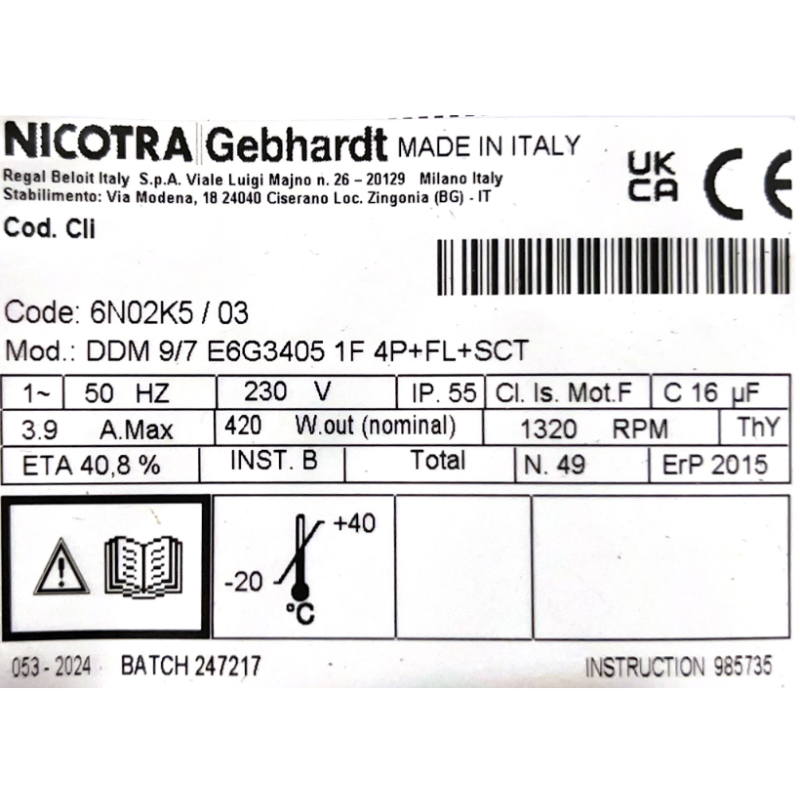

Technical Specifications for the DDM 9-7 NICOTRA Motor, 2,900 m³/h

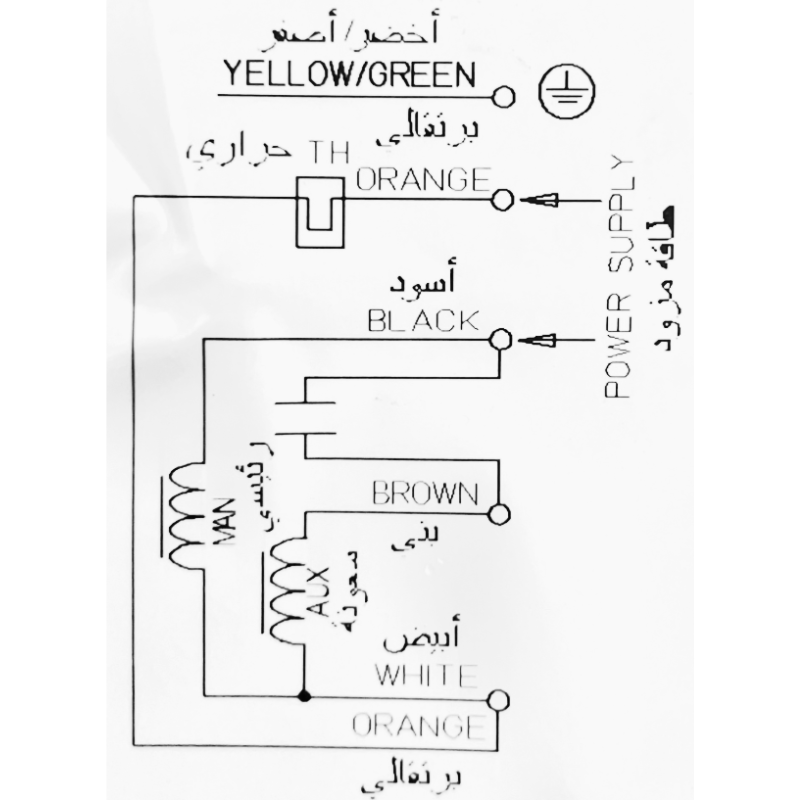

Wiring diagram for the DDM 9-7 Nicotra motor, 2900 m³/h

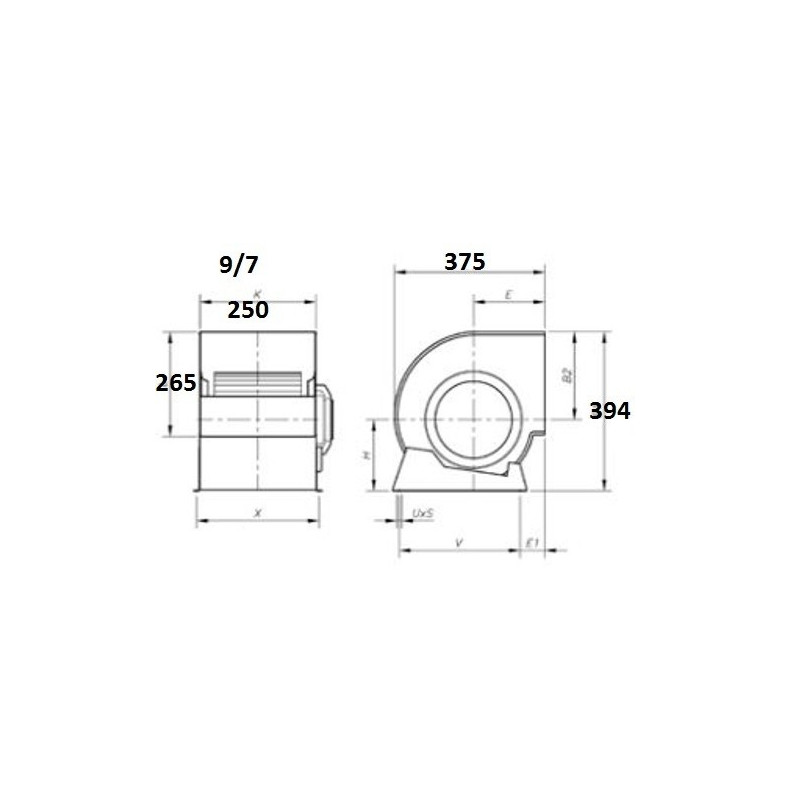

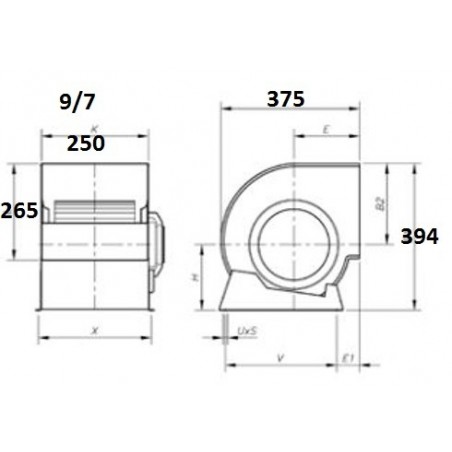

9/7 range hood motor diagram

9/7 snail pump, 2,900 m³/h, single-phase, 25/19

Technical Specifications for the DDM 9-7 NICOTRA Motor, 2,900 m³/h

Wiring diagram for the DDM 9-7 Nicotra motor, 2900 m³/h

9/7 range hood motor diagram

Centrifugal Fan DDM 9/7 25/19 241/181– 2,900 m³/h – 230 V

- Airflow: 2900 m³/h
- Power: 300 W, 230 V
- Dual centrifugal vents for optimized airflow
- Mounting bracket included for easy installation
- Weight ≈ 13 kg
- Compatible with professional range hoods ≥ 500 mm in height
- Standard use in range hoods or under-cabinet units, excellent durability

Quantity

325.00 Tax excluded

390 € TTC

In stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

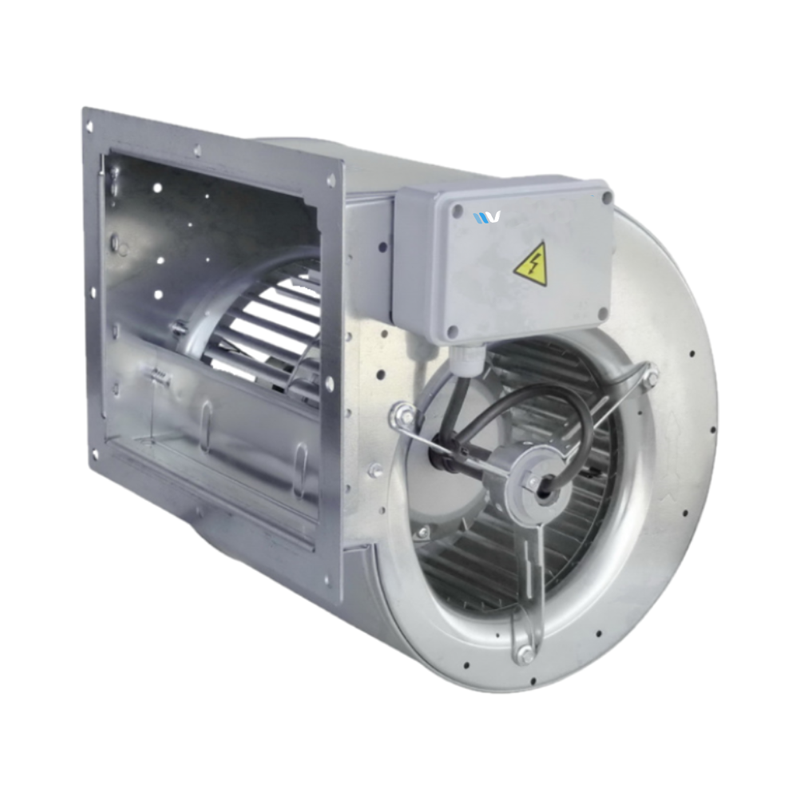

Centrifugal Fan DDM 9/7 – 2,900 m³/h –230 V for commercial range hoods

The DDM 9/7 snail motor is a high-performance motor designed for medium-sized commercial range hoods (1.5 to 3 meters). With an airflow rate of 2,900 m³/h and appropriate power output (≈ 420 W), this motor offers a balance of high airflow, energy efficiency, and durability. Ideal for replacing a worn-out motor or boosting an existing extraction system.

Features and Benefits:

Airflow: Maximum 2,900 m³/h
Power: 300 W – single-phase 230 V power supply
Mounting bracket included for easy installation in a range hood or cabinet
Dual centrifugal inlets: intake on both sides for optimized airflow
Compatibility: Motors compatible with range hoods with an interior height of ≥ 500 mm (Saftair, France Air, Sodeca, Vim…)
Weight: approximately 13 kg
Manufactured in Europe: a guarantee of quality, robust motor designed for professional use

This centrifugal motor ensures efficient extraction of smoke, grease, and vapors in the kitchens of restaurants, snack bars, brasseries, and other food service establishments. Its high airflow, durability, and ease of installation make it an ideal choice for upgrades or replacements. Fast delivery from our warehouses—motor in stock.

For lower or higher airflow requirements, please see our DDM 7/7 or DDM 9/9 Premium models.

Product Details

Brand Nicotra - Regal

Reference DDM97

Warranty: 1 year
Package weight: 18 kg
Engine: Centrifugal Fan
Food: 230V Mono
Engine power: 2,000 to 4,000 m³/h
Engine Type: 9/7, 9/9

ean13 0657968620896
