Extraction fan for commercial kitchen hoods

At VENTILSOGOOD, we’ve selected a wide range of double-inlet snail motors available in single-phase (220/230 V) or three-phase (380/400 V) versions. All of our DD and DDM 7/7, 7/9, 8/9, 9/9R, and 9/9T ventilation motors are compatible with all types of commercial range hoods. Only one of our models is specifically designed for semi-commercial range hoods. Please also note that large-diameter snail motors (9/9, 25/25, and DDM3600) are compatible only with very few restaurant range hoods, generally older models.

The 7/7, 7/9, or 8/9 snail fan can be installed directly into dynamic range hoods. Conversely, the 9/9, 10/10, 12/12, or 15/15 snail motor is usually a dual-outlet centrifugal motor used in an exhaust housing outside the kitchen range hood. These motors can also be used as ventilation motors (for exhaust or intake), air handling unit motors, mechanical ventilation motors, etc.

All of our centrifugal fans are manufactured in Italy or Spain by leading brands such as Nicotra / Regal, CMC, S&P, and Tecnifan. These are high-quality, high-performance, and reliable centrifugal fans. Each one is compatible with many other brands, such as Casal, Sodeca, EBM, Sisteven, Lemmens, Torin, ELCO, as well as private-label brands like Metro, Alvene, Vim, GGM, Saftair, and more.

Discover our selection of auger motors, renowned for their efficiency and durability, today. Whatever your needs, trust our know-how and professional expertise to equip your restaurant kitchen. Our team is here to guide you in making your selection and answer any questions you may have about auger motors.

Find the right motor for your commercial range hood*

* Calculation is for illustrative purposes only and is not exhaustive; assumes a compliant electrical system; not compatible with F400/120.

Measure and enter length A

Enter the length in centimeters

A

B

C

Detailed technical specifications for each product are available on the product page. Please review them before placing your order; Ventilsogood will not be held responsible for any measurement errors.

How to Choose the Right Snail Motor?

Choosing a snail motor depends on several factors, such as the size of the original model, the range hood or cabinet in which it will be installed, the required airflow, and the power supply. In fact, depending on the size of your kitchen and how you use your range hood, you’ll need to choose a snail fan with an appropriate airflow rate. Airflow rate is the volume of air the fan can exhaust in one hour. It is measured in m³/h. The higher the airflow, the more powerful the motor. Next, the dimensions of the motor outlet must match those of your exhaust duct. Similarly, the size of the snail motor must match the interior dimensions of your restaurant range hood or your current exhaust cabinet.

Snail motor models range from DD/DDM 7/7 to 15/15 and are designed for a variety of applications, from professional range hoods (both newer and older models) to controlled mechanical ventilation (CMV) systems and paint booths.

Check out our wide range of centrifugal fans available for online ordering!

If you’re looking for a reliable and efficient solution for ventilating your restaurant kitchen, our range of snail motors is the answer to all yourair extraction needs. They’re designed to fit all professional range hoods, offering performance, durability, and ease of installation.

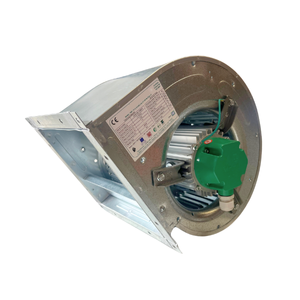

DDM and DD 7/7 Screw Fans

The DDM7/7 and DD7/7 snail motors are designed to provide excellent extraction in commercial settings. The DDM7/7 model, with a capacity of 1,700 m³/h, and a power rating of 300W, is ideal for range hoods measuring 1 to 2.5 meters. The DD 7/7 snail fan motor, which is more energy-efficient at 147W, is suitable for hoods with a height of 400 mm, providing approximately 1,500 m³/h of extraction capacity. These motors are valued for their ease of integration and efficient operation in fast-food restaurants, kebab shops, fry shops, snack bars, and food trucks.

DDM 7/9 and 8/9 snail motors

The DDM7/9 and DDM8/9 motors are suitable for larger kitchens, with extraction capacities of 2,600 m³/h and 3,000 m³/h., respectively. The DDM7/9 fits perfectly under hoods ranging from 1.5 to 2.5 meters in height, while the DDM8/9 is designed for hoods 450 mm high in spaces ranging from 2 to 3 meters. Their robust construction and careful balancing ensure reduced vibration and a long service life.

DDM 9/7 and 9/9 Screw Motors

/h The DDM9/7 screw fan, with an airflow rate of 2,900 m³/h and power consumption of 420W, as well as the DDM 9/9 snail fan, which delivers 3,600 m³ with 550W, are solid choices for range hoods measuring 2 to 3 meters in width and at least 500 mm in height, or for off-wall units. These models feature a central impeller that reduces vibrations, thereby increasing their durability and making these motors suitable for establishments with high extraction requirements.

Centrifugal Fan DD 9/9 400° Standard/2h

The DD 9/9 snail-type motor is 400° certified/2h, and is specifically designed to meet fire safety standards, offering a capacity of 3,600 m³/h and a power rating of 550W. It is the ideal solution for large-scale installations that must also meet strict regulatory requirements.

High-Capacity Motors for Enclosures

The 10/10 motor, the 12/12, and the 15/15 three-phase hood motor are powerful ventilation units with airflow rates of 4,000 m³/h,, 6,000 m³/h,, and 9,000 m³/h.. They are perfect for large commercial kitchens with hoods ranging from 3 to 6 meters. They are designed for installation in off-set exhaust cabinets, ensuring efficient air extraction and long service life.

Motors for SEMI PRO and VMC Range Hoods

The DD133/190 and DD146/190 motors are ideal for semi-or CMV-type ventilation systems, offering a flow rate of 900 m³/h. These are CMV motors designed for installations where space is limited and are valued for their quiet operation and simple installation.

Our product line for restaurant kitchens includes a wide range of ventilation solutions, from professional range hoods (with or without motors) to air extraction units, as well as extraction turrets, variable-speed drives, and accessories. Although not all of our products are featured on our website, please feel free to contact us to discover our full product lineup at the best prices. When you order from our website, you’ll enjoy fast delivery within 24–72 hours for 92% of our products in stock at our warehouses.

What is a snail motor?

The snail motor is an essential component of the range hood that ensuresthe removal of staleair produced during cooking. It is typically located inside a dynamic range hood or externally within an exhaust housing. Its operation is simple. It relies on the principle of centrifugal force. When the motor runs, it draws air through the range hood using the centrifugal force generated by the rotation of the auger. The air then passes through the hood’s filters, which trap grease and steam, before being vented outside.

How is a snail motor installed?

The screw fan can be mounted directly inside a dynamic range hood or within an exhaust enclosure. The outlet frame of the screw fan must be connected to a galvanized steel or aluminum exhaust duct. This connection is made using a mounting frame or flange, which secures the fan firmly to the range hood. It is important to ensure that the connection between the fan and the exhaust duct is airtight to prevent air leaks and loss of airflow.

Why Choose a Snail Motor for Your Commercial Range Hood?

When choosing a motor for a professional restaurant range hood, it is crucial to consider various key factors, such as power, energy efficiency, dimensions, noise level, and compliance with safety standards. In this regard, the snail fan motor is ideal for tight budgets and compact installations. It can adapt to various restaurant kitchen configurations thanks to its single-phase 220/230V or three-phase 380/400V versions, just like the extraction turret. It is also compatible with all types of commercial range hoods and offers high airflow, enabling efficient extraction of smoke, odors, and grease. Several models are available in different sizes and power ratings to suit everyone’s needs. Finally, when the snail fan is installed inside a remote exhaust cabinet, it produces less noise.
