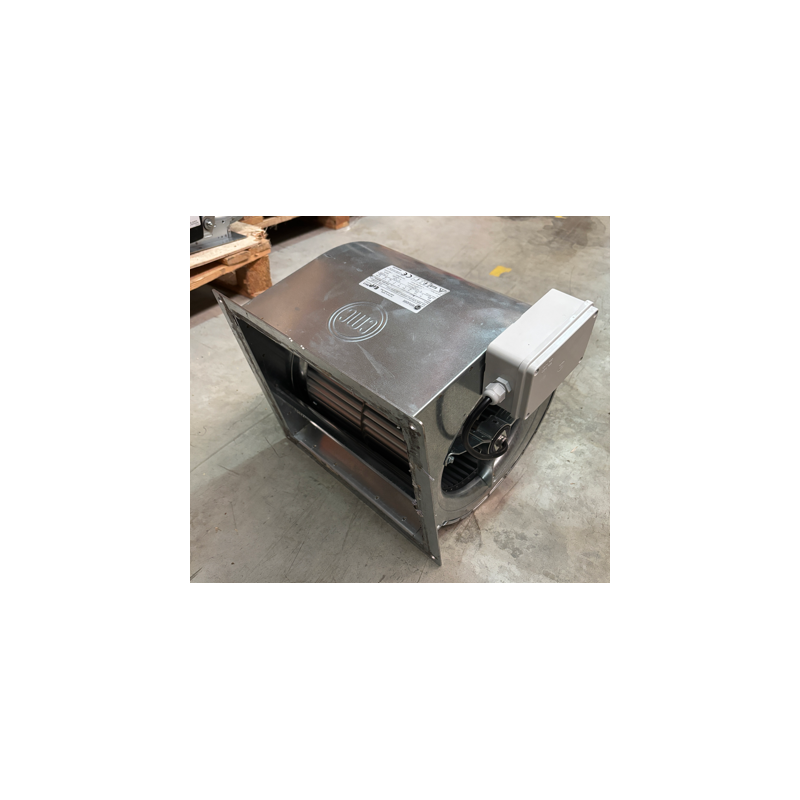

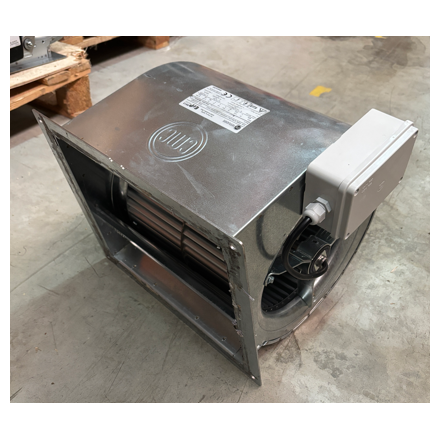

Used Centrifugal Fan DDM 8/9 - 9/9R PREMIUM – 3,000 m³/h 220V

On sale!

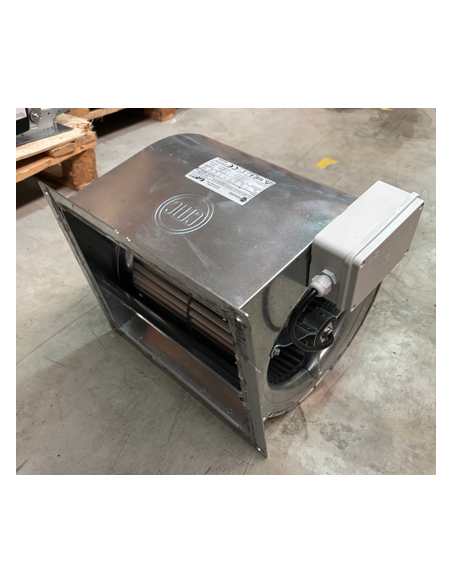

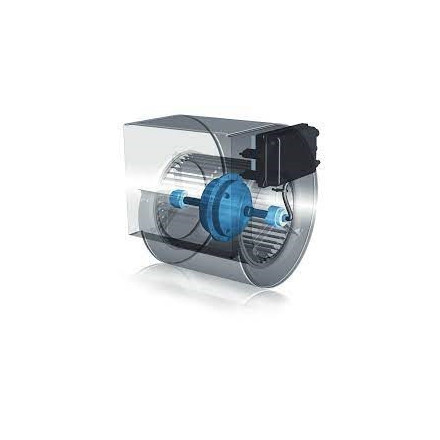

Centrifugal Fan DDM 8/9-9/9R – 3,000 m³/h | Power & Compatibility with Stainless Steel Range Hoods

Technical specifications for the DDM 8/9 or 9/9R "Tight" screw pump, 3,000 m³/h

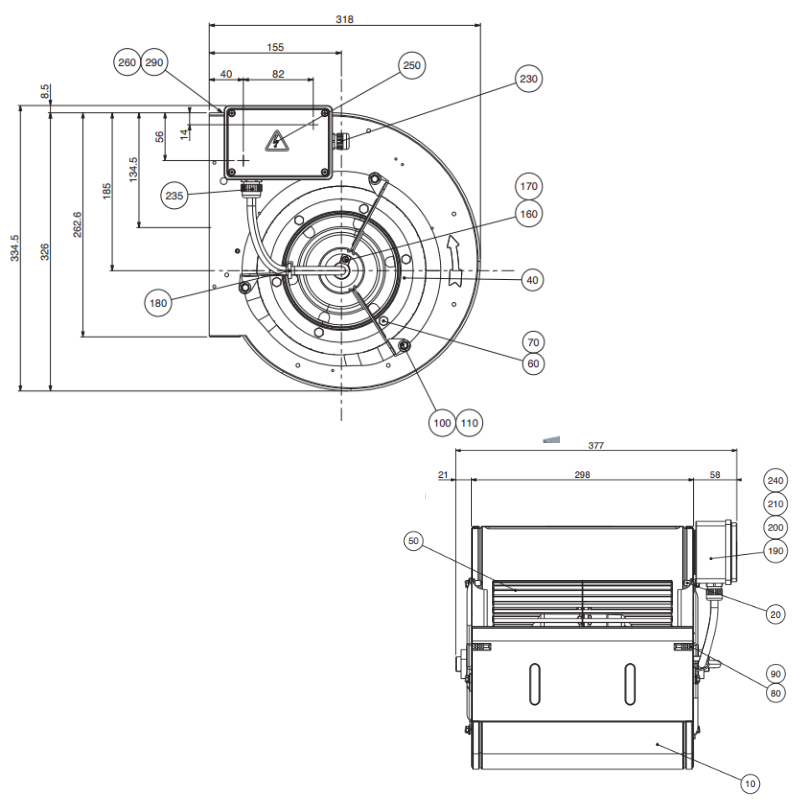

Dimensions of the Nicotra DDM8/9 - 9/9R Tight worm gear motor

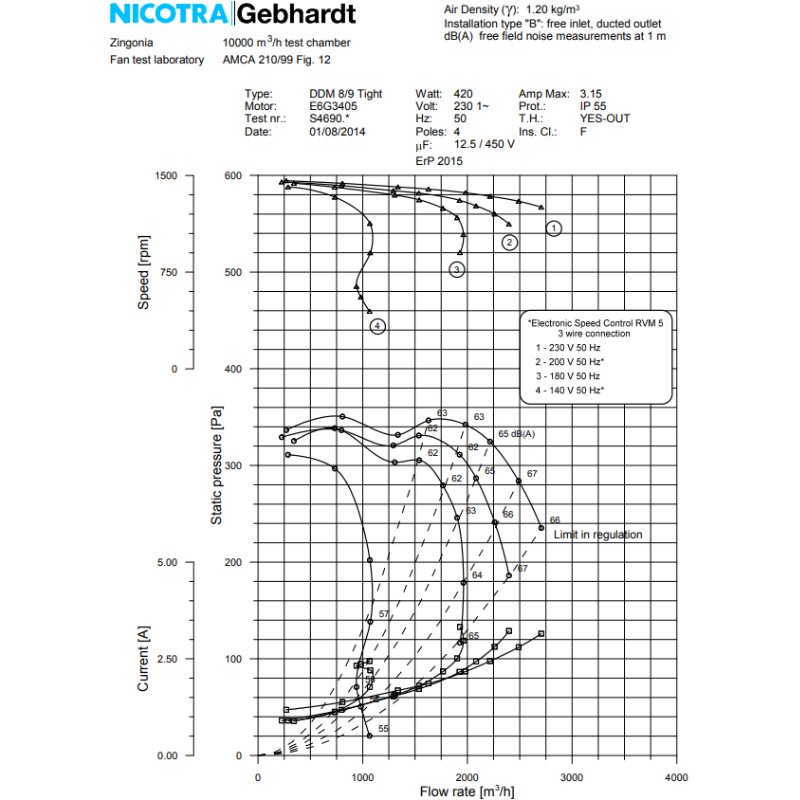

DDM 8/9 or 9/9R Tight Nicotra snail motor performance curve

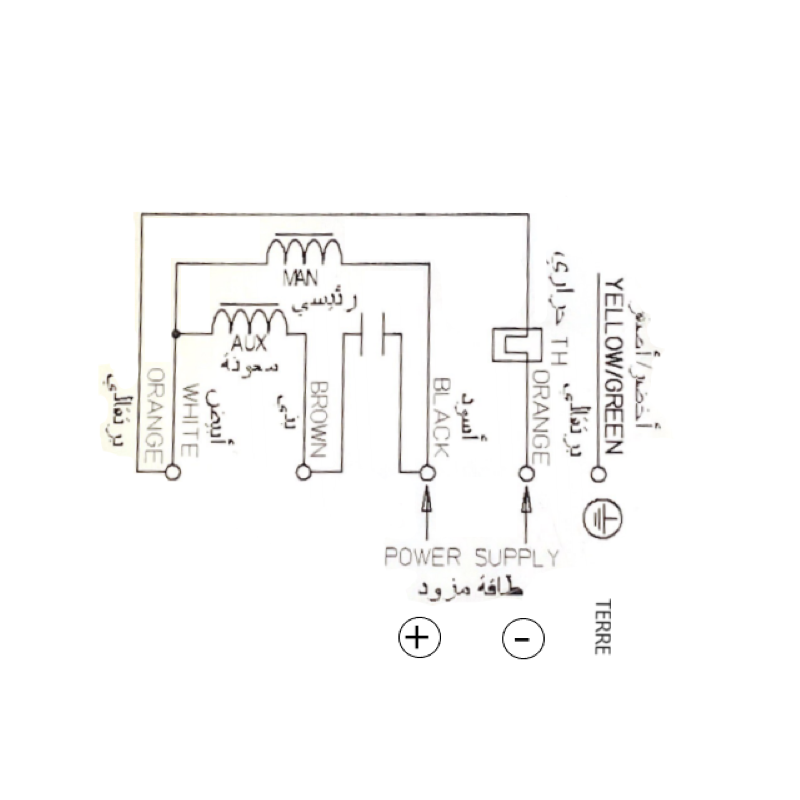

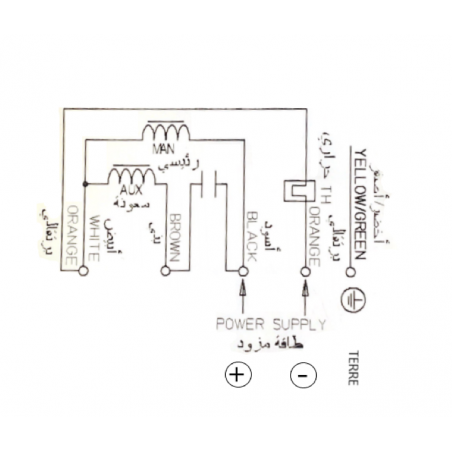

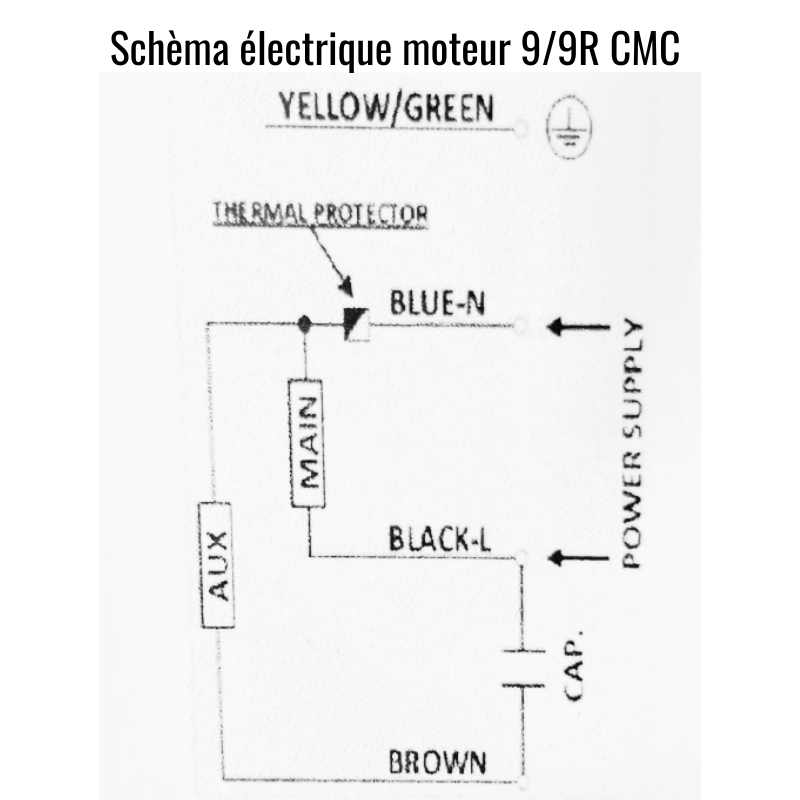

Wiring Diagram and Technical Specifications for the CMC 9/9R Motor

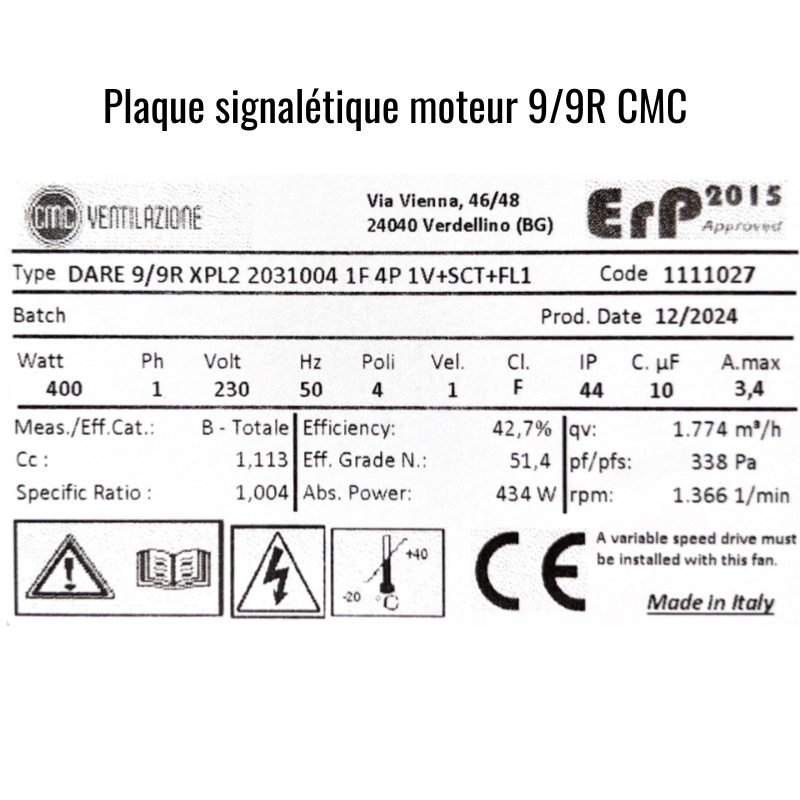

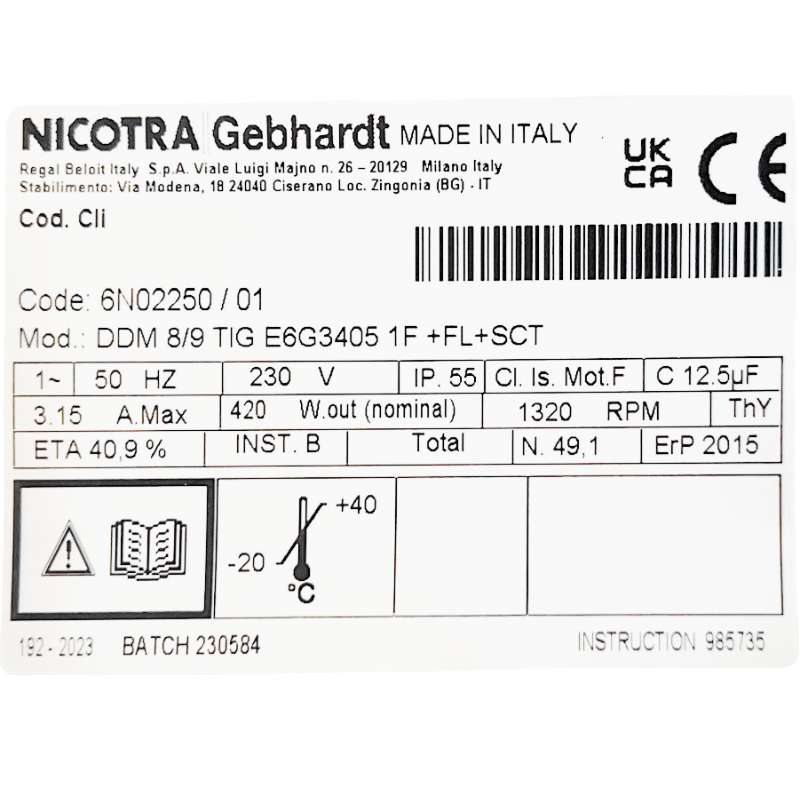

CMC 9/9R Engine Technical Specifications Nameplate

Amazing deal on a used unit, 1-year warranty.
Centrifugal Fan 9/9 25/25 dual inlet 3,000 m³/h!

- DDM 9/9T motor - DDM 8/9 - DARE 9/9 R depending on brand: 9/9 “CUSTOM-SIZED” to fit into 450-high hoods or those with a steep incline (DIAMETER OF A 7/7).
- Dual air inlets
- Manufacturer code: 6N02250
- Airflow capacity: 3,000 m³/h
- Power supply: 220 V- 4P - 400 W - 3.8 A - CE - 220 V
- IP55 housing
- Part number Nicotra: 6N02250, motor code E6G3405, part number CMC: DARE 9/9R
- Mounting bracket included
- Weight: 15 kg
- 1-year warranty. Brand: NICOTRA /REGAL
- Dimensions: Outlet 30 x 26 cm and reduced diameter ~33 cm (~39 cm for a standard 9/9 model).
- Model compatible with all standard range hoods = minimum height of 450 mm (Ventileco, Saftair, France air, Sodeca, S&P, Alvène, Bertrand, VIM, etc.)
- Equivalents: Nicotra, Regal, Casal, Metro, Vim, Sodeca, S&P, Sisteven, etc.

If you’re looking for a speed controller compatible with this motor, click here:

If the model Nicotra is out of stock, it will be replaced by a 9/9R motor (equivalent in power and dimensions—from a higher-end model range) at no additional cost, from the brand CMC —Italy

Quantity

295.00 345.00 Tax excluded

354 € TTC

Last items in stock

Fast delivery

Advisers 5 days a week

Payment in 3 or 4 instalments

Description
Product Details

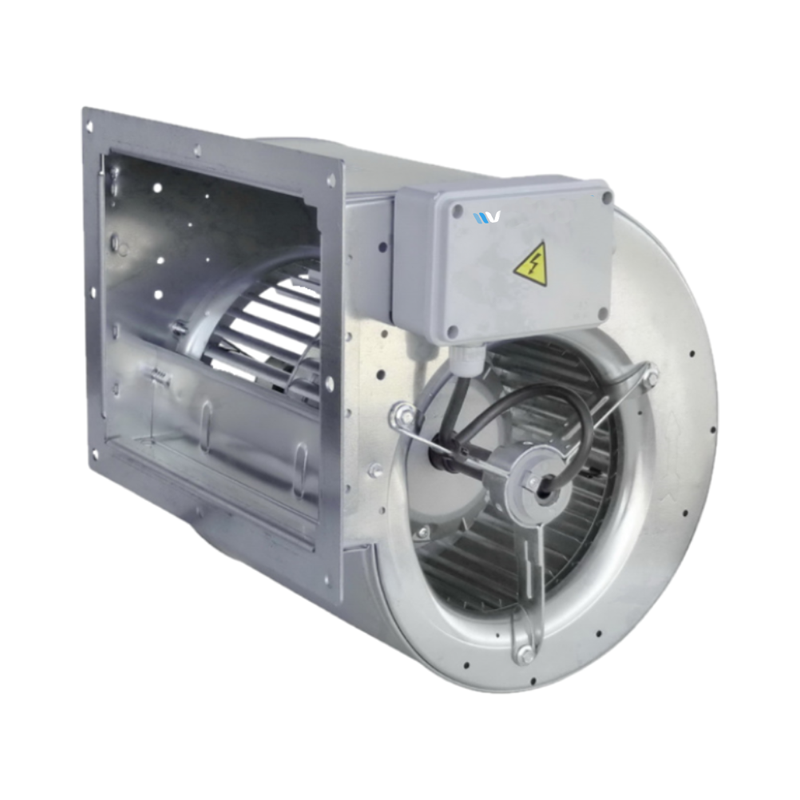

Centrifugal Fan DDM 8/9 Dual Centrifugal Intake – 3,000 m³/h for professional stainless steel range hoods

The DDM 8/9 – 3000 m³/h snail fan is the industry standard for ventilation systems in professional kitchens. Compact, powerful, and perfectly balanced, it guarantees efficient, quiet, and long-lasting extraction for all stainless steel restaurant range hoods.

Key Features of the DDM 8/9 Motor

Ideal size for professional stainless steel range hoods 2 to 3 meters in length.
Universally compatible with all standard hoods 450 mm in height.
400 W power output for an extraction rate of 3,000 m³/h —excellent size-to-power ratio.
Dual-outlet centrifugal technology ensures uniform suction on both sides.

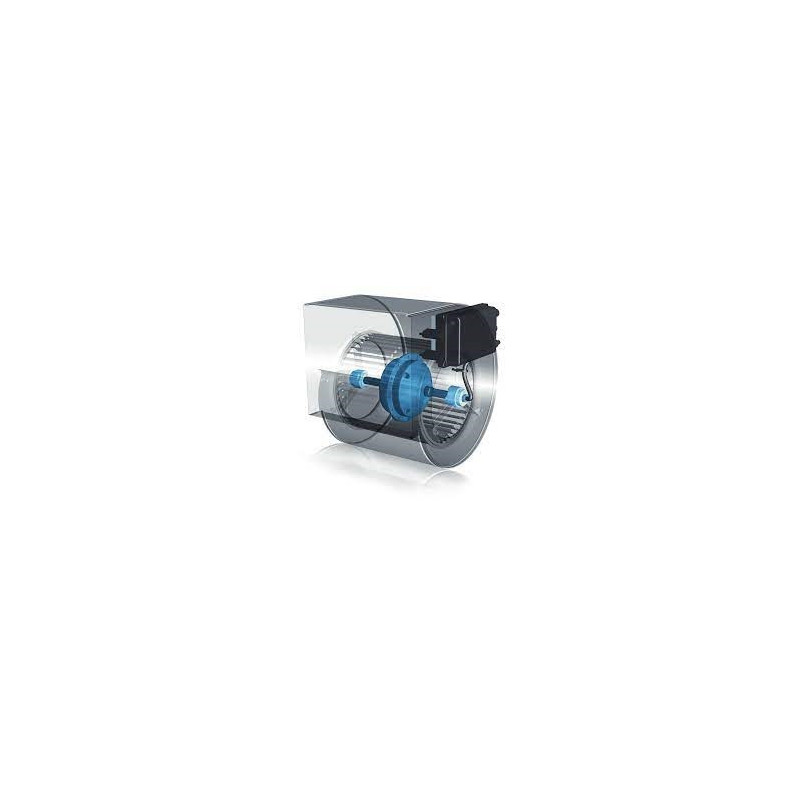

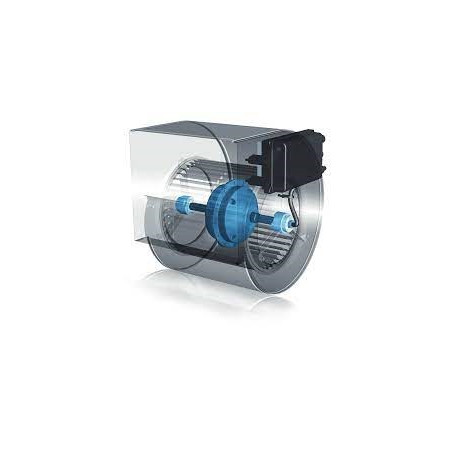

DDM design with a centered motor for optimal vibration and noise reduction.
Precision balancing ensures the motor’s durability and longevity.
Mounting frame included for quick installation in a stainless steel range hood or motor housing.
IP55 housing with integrated capacitor—maximum protection against moisture and grease.
High-qualityItalian manufacturing: performance, reliability, and safety guaranteed.
Simple connection and option to add a 220V single-phase variable-speed drive.

Recommended Use

This DDM 8/9 centrifugal motor is ideal for extracting smoke, greasy fumes, and steam in all types of professional kitchens: restaurants, fast-food establishments, kebab shops, snack bars, creperies, brasseries, and institutional kitchens.

Thanks to its excellent efficiency and reinforced design, it combines quiet operation, energy efficiency, and long-term reliability.

Also check out our DDM 7/7 motor, perfect for more compact range hoods.

Find all related products at the bottom of the page.

Product Details

Brand Nicotra - Regal

Reference occazDM89dare99r
